0.3m OM4 MPO MTP Fiber Optic Loopback Adapter

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

0.3m OM4 MPO MTP Fiber Optic Loopback Adapter

Brand Name : Geehe Comm

Model Number : GH-BC-009

Certification : ISO9001:2015, ISO14001, CE,RoHS

Place of Origin : Wuhan China

MOQ : 100 pcs

Price : Negotiation

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 1,800 pcs/per day

Delivery Time : Within 7-8 working days after confirm the order

Packaging Details : Plastic box per pc with pressure defense sponge, outer carton

Model Name : Fibre Loopback Plug

Fiber Connector : MPO

Fiber Type : U.S. or Chinese Corning fiber

Housing Material : Plastic

Material : PVC & LSZH

Boot Color : Blue,Green,Grey, customization

Max Attenuator : 3.50dB/km@ 850nm, 1.25dB/km@1300nm

Operating Temperature : - 20℃ to +70 ℃

Contact Now


OM4 MPO Loop Back MTP Fiber Optic Loopback 0.3m Fibre Loopback Plug


1. Product Overview:


MPO fiber loopback cable provides an economical solution for a number of fiber optic test applications. It includes a generous yet manageable fiber loop virtually eliminating bend loss. Each cable is functionally tested before shipping. This series features a 12 Channel MPO connector without alignment pins and is ideal for QSFP applications.

It also helps to test the transmitter capability and receiver sensitivity of network equipment.
Suitable for high-speed applications and lab evaluation.

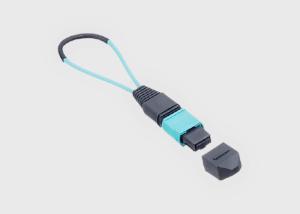

0.3m OM4 MPO MTP Fiber Optic Loopback Adapter

2. Optical Cable Loopback Feature and Benefits:

  1. MTP/MPO Loopback in low insertion loss and high reliability
  2. Suitable for 10G, 40G, and 100G protocols testing
  3. 12-fiber and 24-fiber ferrule available
  4. Pull tab option available
  5. Female and Male MPO/MTP option of connectors
  6. Polarity upon customer choice
  7. Factory Terminated and tested


3. Fiber Optic Backloop Adapter Applications:

  1. Data Centre Infrastructure
  2. Fibre Channel
  3. Parallel Optics
  4. Emerging 40 and 100Gbps Protocols
  5. Fiber Optic Loopback applications
  6. Equipment interconnection
  7. Device pig-tailing
  8. Premise networks
  9. Patch panel applications
  10. Communication connections


0.3m OM4 MPO MTP Fiber Optic Loopback Adapter


4. Certification And Compliance

1) TIA/EIA-568-C.3 and ISO/IEC 11801
2)IEC-61754-7 & EIA/TIA-604-5
3)Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC

0.3m OM4 MPO MTP Fiber Optic Loopback Adapter


5.Optic Adapter Specification & Technology Parameters:

Parameter Value
Performance Specifications (MM)
Fiber TypeMultimode OM1, OM2, OM2, OM4
Max. Attenuation3.50dB/km@ 850nm, 1.25dB/km@1300nm
Insertion Loss< 1.0dB
Return Loss< -25dB
Operating Temperature- 20℃ to +70 ℃
Performance Specifications (SM)
Fiber TypeSingle Mode 9/125 um G.652D Fiber
Max. Attenuation0.4dB/km@1310nm,0.3dB/km@1550nm
Insertion Loss< 1.0dB
Return Loss< -60dB
Operating Temperature- 20℃ to +70 ℃



6. Ordering Information:

Fiber TypeConnector TypePolishFiber Count
1Single Mode OS2LCLCAAPC22 Fibers
262.5/125um Multimode OM1SCSCBUPC1212 Fibers
350/125um Multimode OM2MTMTRJ FemaleCPC2424 Fibers
450/125um Multimode OM3MBMTRJ Male
550/125um Multimode OM4MP*12F MPO Female
MA*12F MPO Male
PP*24F MPO Female
PA*24F MPO Male




7. Wuhan Geehe Comm Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards

4) 24/7 After Service
Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.

0.3m OM4 MPO MTP Fiber Optic Loopback Adapter
